Brand - McMASTER-CARR
Item Number - 1470T621 McMASTER-CARR

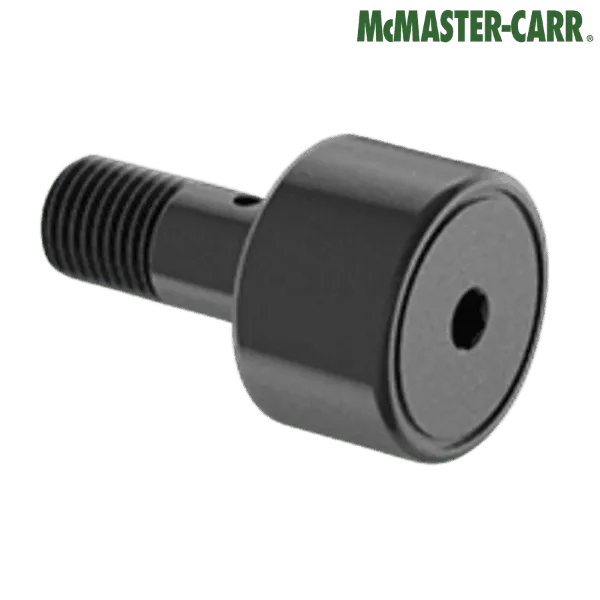

Category - Threaded Track Roller (Black-Oxide Steel Crowned Rollers with Seal)

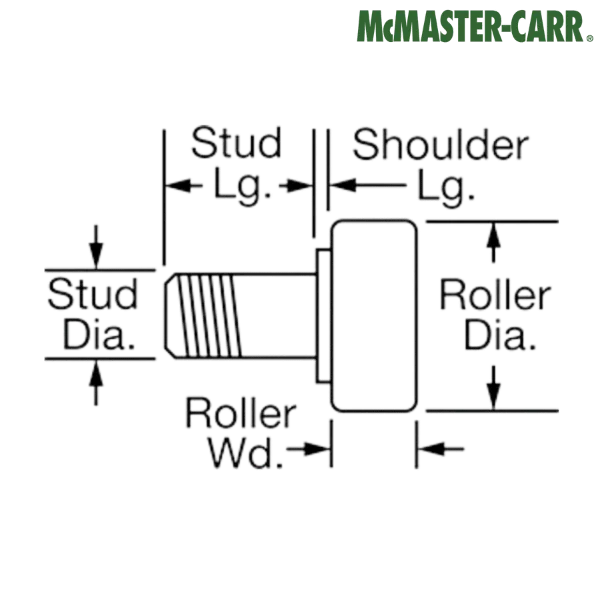

Diameter of Roller (mm) - 26
Width of Roller (mm) - 12
Diameter of Stud (mm) - 10
Length of Stud (mm) - 23
Thread Size - M10
Pitch of Thread (mm) - 1
Length of Thread (mm) - 12
Diameter of Shoulder (mm) - 15
Length of Shoulder (mm) - 0.6
Maximum Speed (rpm) - 9000
Radial Static Load Capacity (lbs) - 2300
Radial Dynamic Load Capacity (lbs) - 1700
Maximum Temperature (°F) - 250°
Inside Bearing Type - Needle Roller
Roller-Mount Track Lubricators - 4248N15

** Images are for representation purposes only
