Brand - McMASTER-CARR
Item Number - 3376K1 McMASTER-CARR

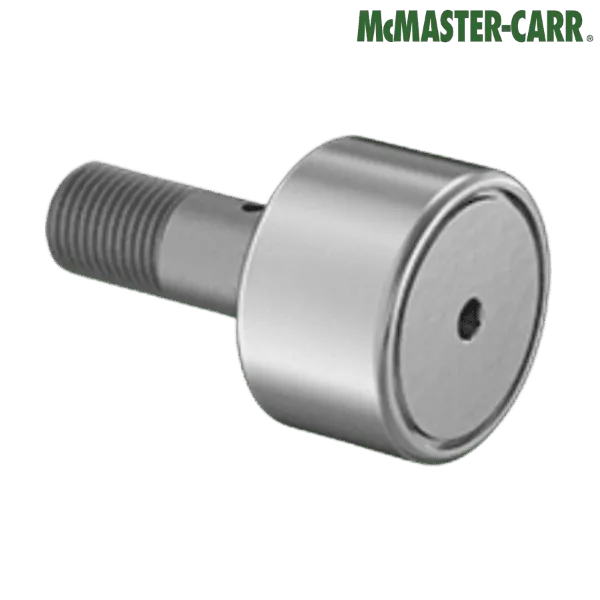

Category - Corrosion-Resistant Threaded Track Rollers (Chrome-Plated Steel Flat Rollers with Seal)
Roller Diameter (inch) - 0.5
Roller Diameter (mm) - 12.7
Roller Width (inch) - 0.375
Roller Width (mm) - 9.525

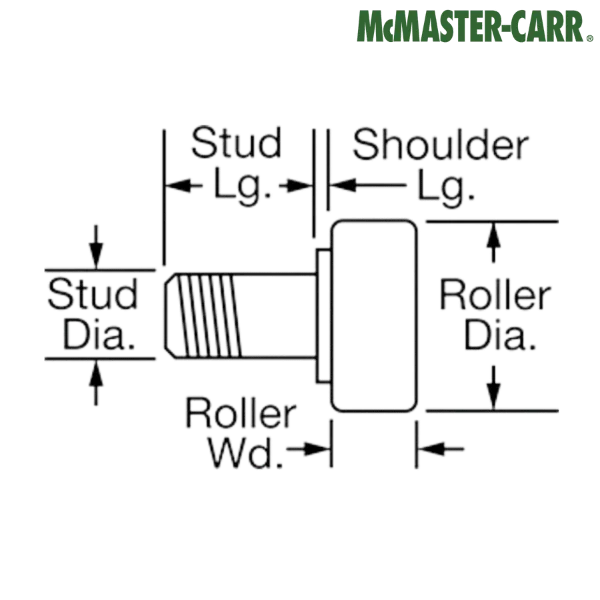

Stud Diameter (inch) - 0.1875
Stud Diameter (mm) - 4.7625
Stud Length (inch) - 0.625
Stud Length (mm) - 15.875
Thread Size - 10-32
Thread Diameter (inch) - 0.19
Thread Diameter (mm) - 4.826
Number of Threads per inch - 32
Thread Length (inch) - 0.25
Thread Length (mm) - 6.35
Shoulder Diameter (inch) - 0.296875
Shoulder Diameter (mm) - 7.540625
Shoulder Length (inch) - 0.03125
Shoulder Length (mm) - 0.79375
Maximum Speed (rpm) - 5000
Radial Static Load Capacity (lbs) - 300
Radial Dynamic Load Capacity (lbs) - 600
Maximum Temperature (°F) - 250°
Bearing Type - Needle Roller

** Images are for representation purposes only
