Brand - McMASTER-CARR
Item Number - 3647K13 McMASTER-CARR

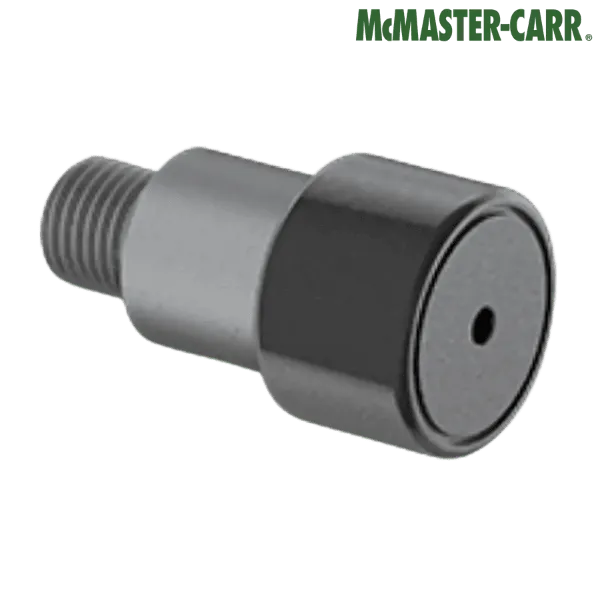

Category - Threaded Track Rollers with Adjustable Shoulder (Steel Flat Rollers with Seal)
Diameter of Roller (inch) - 1
Diameter of Roller (mm) - 25.4
Width of Roller (inch) - 0.625
Width of Roller (mm) - 15.875
Stud Diameter (inch) - 0.4375
Stud Diameter (mm) - 11.1125
Stud Length (inch) - 0.5
Stud Length (mm) - 12.7
Thread Size - 7/16"-20
Thread Diameter (inch) - 0.4375
Number of Threads per inch - 20
Thread Length (inch) - 0.5
Thread Length (mm) - 12.7
Shoulder Diameter (inch) - 0.625
Shoulder Diameter (mm) - 15.875
Shoulder Length (inch) - 0.5
Shoulder Length (mm) - 12.7
Height Adjustment Capability (inch) - 0.03
Maximum Speed (rpm) - 4500
Radial Static Load Capacity (lbs) - 4800
Radial Dynamic Load Capacity (lbs) - 2300
Maximum Temperature (°F) - 250°
Bearing Type - Needle Roller
Includes - Mounting Hardware

** Images are for representation purposes only
