Brand - McMASTER-CARR
Item Number - 4227N14 McMASTER-CARR

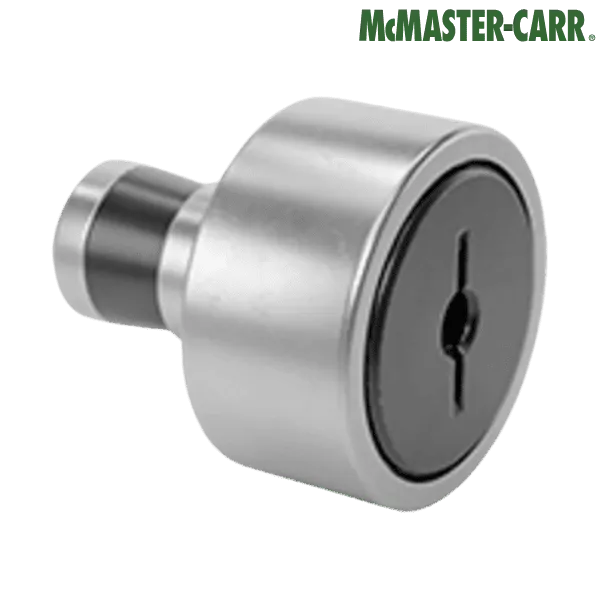

Category - Tapered Stud Track Rollers (Steel Flat Rollers with Seal)
Roller Diameter (mm) - 26
Roller Width (mm) - 12
Stud Diameter (mm) - 10
Stud Length (mm) - 20
Shoulder Diameter (mm) - 20
Shoulder Length (mm) - 0.6
Maximum Speed (rpm) - 11900
Radial Static Load Capacity (lbs) - 1500
Radial Dynamic Load Capacity (lbs) - 1100
Maximum Temperature (°F) - 175°
Inside Bearing Type - Needle Roller Bearing

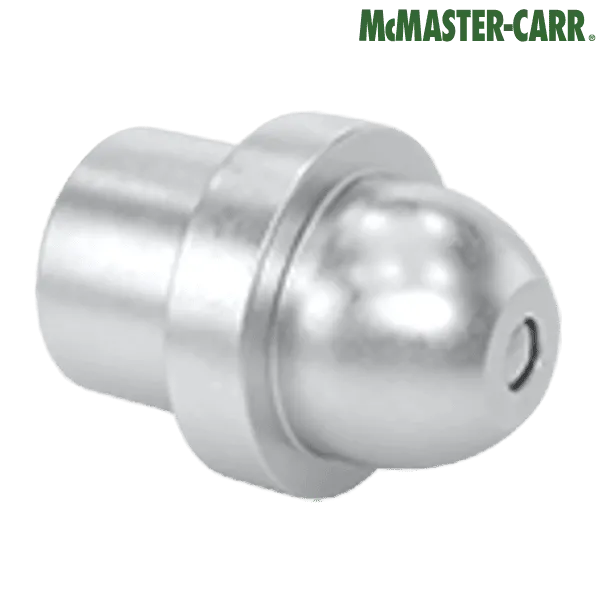

Grease Fittings - 4227N18

**Images are for representation purposes only
