Brand - McMASTER-CARR
Item Number - 6721K118 McMASTER-CARR

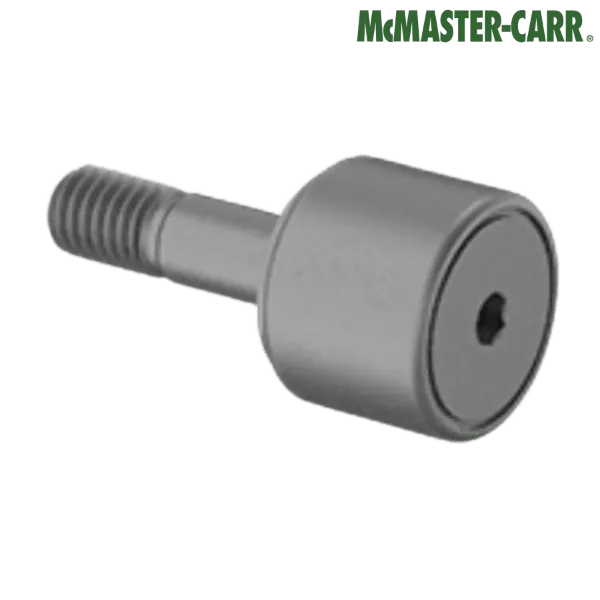

Category - Maintenance Free Threaded Track Roller (Steel Crowned Rollers without Seal)

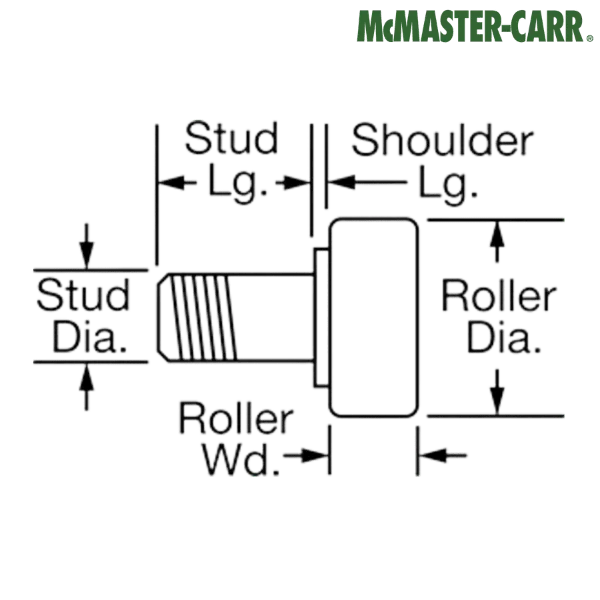

Diameter of Roller (inch) - 1.5
Diameter of Roller (mm) - 38.1
Width of Diameter (inch) - 0.875
Width of Diameter (mm) - 22.225
Diameter of Stud (inch) - 0.625
Diameter of Stud (mm) - 15.875
Length of Stud (inch) - 1.5
Length of Stud (mm) - 38.1
Thread Diameter (inch) - 0.625
Thread Diameter (mm) - 15.875
Number of Threads per inch - 18
Thread Length (inch) - 0.75
Thread Length (mm) - 19.05
Shoulder Diameter (inch) - 1.125
Shoulder Diameter (mm) - 28.575
Shoulder Length (inch) - 0.03125
Maximuum Speed (rpm) - 1200
Radial Dynamic Load Capacity (lbs) - 160
Maximum Temperature (°F) - 250°
Bearing Type - Plain
Includes - Mounting Hardware

** Images are for representation purposes only
