Brand - McMASTER-CARR
Item Number - 6721K7 McMASTER-CARR

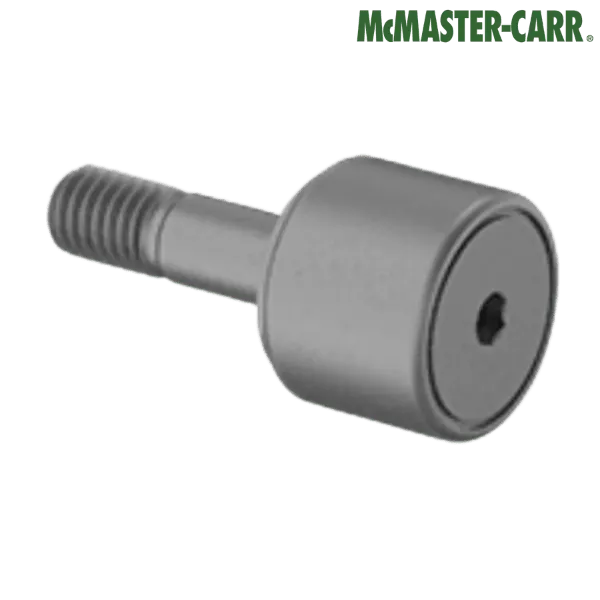

Category - Maintenance Free Threaded Track Roller (Steel Flat Rollers without Seal)

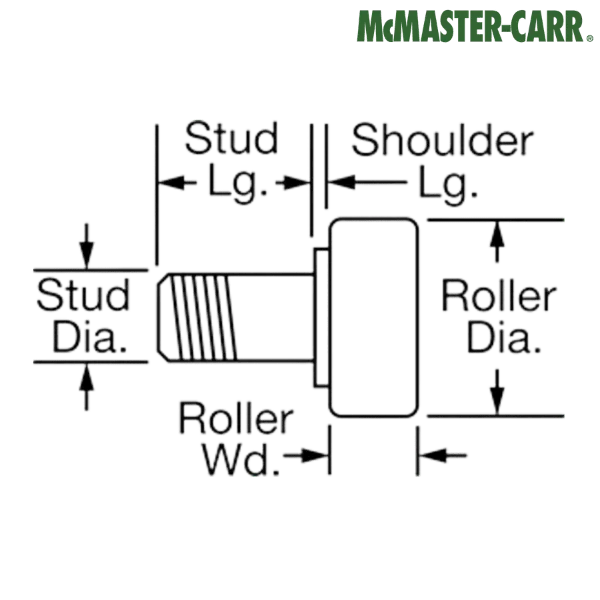

Diameter of Roller (inch) - 1.25
Diameter of Roller (mm) - 31.75
Width of Diameter (inch) - 0.75
Width of Diameter (mm) - 19.05
Diameter of Stud (inch) - 0.5
Diameter of Stud (mm) - 12.7
Length of Stud (inch) - 1.25
Length of Stud (mm) - 31.75
Thread Diameter (inch) - 0.5
Thread Diameter (mm) - 12.7
Number of Threads per inch - 20
Thread Length (inch) - 0.625
Thread Length (mm) - 15.875
Shoulder Diameter (inch) - 0.9375
Shoulder Diameter (mm) - 23.8125
Shoulder Length (inch) - 0.03125
Maximuum Speed (rpm) - 1200
Radial Dynamic Load Capacity (lbs) - 110
Maximum Temperature (°F) - 250°
Bearing Type - Plain
Includes - Mounting Hardware

** Images are for representation purposes only
